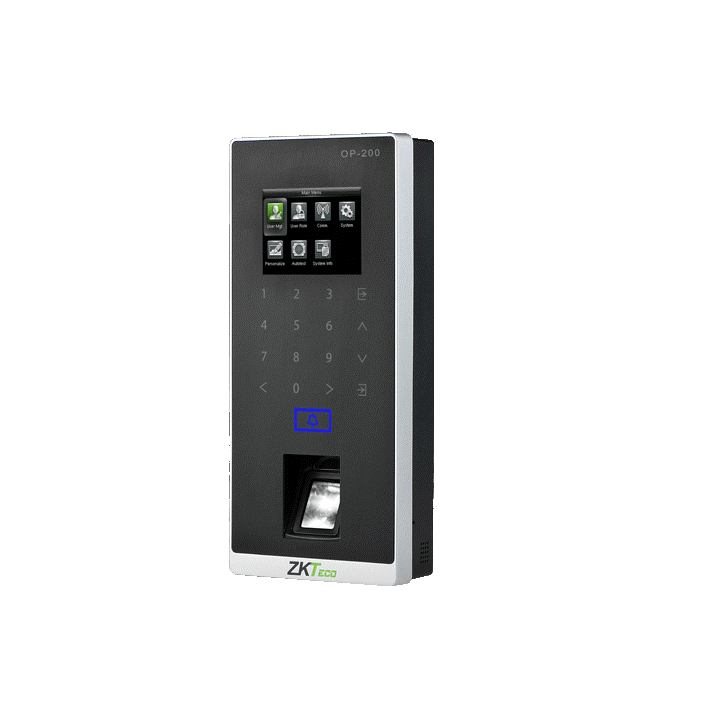

OP-200
OnGuard Integration
OP-200 rmware communicates directly with OnGuard and automatically synchronizes needed customer user data. Eliminates need for middleware. Eliminates need to manually create users in the biometric readers.
Communication
Wiegand-Out to Lenel access control panel
Wiegand-In for connecting optional 3rd party card readers
TCP/IP and RS232/485 ports for data communication
USB port for offline data management
Biometric Performance
Advanced SilkID fingerprint recognition technology delivers optimal accuracy,matching speed and powerful fake finger detection.
Authentication Options
(single or multi-factor)
Fingerprint
RFID (HID, Mifare, Desfire)
Password
Auto Data Synchronization
Multiple OP-200s automatically synchronize
fingerprint templates. Eliminates need for middleware. Eliminates need to separately manage templates
Capacity
3,000 fingerprint templates
30,000 cards
100,000 transactions
OP-200 is very easy to install and simple to use!
Enroll users’ fingerprints by using the OP-200 master unit’s webserver. The OP-200 master unit then synchronizes those users’ fingerprints and data with the OP-200 slave units.
Installation steps as following:
1. Provide 12V power and network cables near the Master and Slave readers wall mounts.
2. Connect power and network cable to the Master and Slave readers. Make note of the Master reader’s IP address. Configure Slave readers with OP-200 IP address.
3. Install the driver on computer running OnGuard /Symmetry access control software and enter IP address of the Master reader.
4. OnGuard / Symmetry access control software user-data automatically synchronizes with OP-200 Master. After synchronization, enroll fingerprints either directly on the Master reader or on SilkID fingerprint enrollment reader (connected to computer running OnGuard /Symmetry access control software).
5. Installation is complete. OP-200 Master reader will automatically synchronize user data and fingerprint templates amongst OP-200 slave readers whenever changes occur.

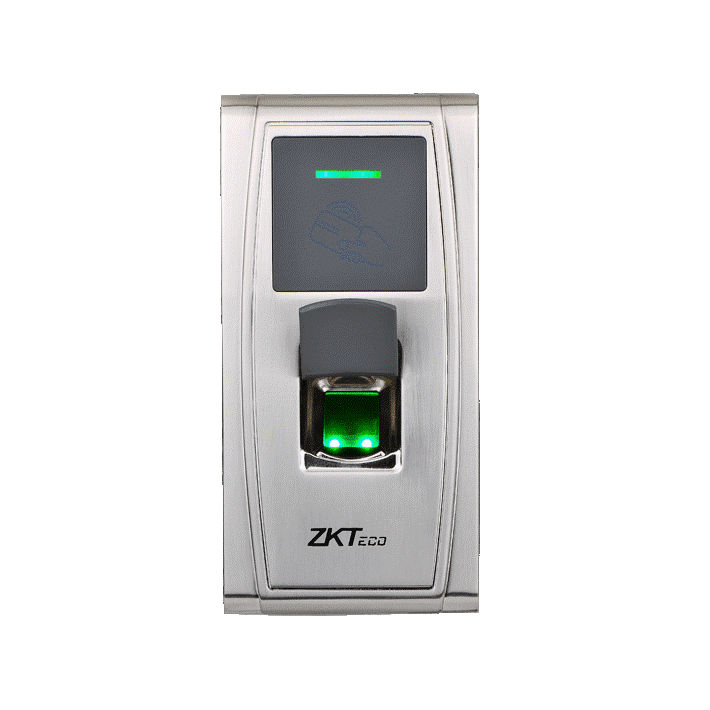

MA-300BT
MA300-BT
Metallic Casing Outdoor Access Control supporting Bluetooth connection
Overview
MA300-BT, one of the innovative biometric fingerprint readers for access control applications. Offering unparalleled performances by adopting an advanced ZK fingerprint algorithm for reliability, precision and excellent matching speed.
It is metallic casing and IP65 rated which enables it to be resistant from water, dust and other outside damages.
MA300-BT offers the flexibility to be installed standalone or with any third party panels that support 26-bit wiegand. User can be enrolled by the administrator card when the device works in standalone mode.TCP/IP and RS485 are available, so that the device can be connected easily and conveniently.
It supports Bluetooth communication , mobile phone App management, And realizes access control ,user information registration, devices setting up.
Rugged Structure and Extra Durability
IP65 rated waterproof and dustproof structure
Metallic Casing
Vandal-proof for outdoor installation
Fast and Accurate Fingerprint Algorithm
1 touch a-second user recognition.
Store 1,500 fingerprint templates, 10,000 cards and 100,000 transactions.
Full Access Control Features
Anti-passback.

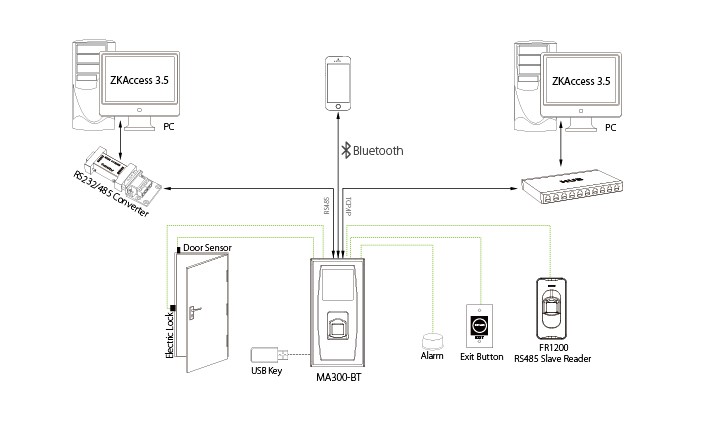

Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
Easy Installation and Connectivity
Wiegand input & output.
Network interface by TCP/IP or RS485
Bluetooth Communication
Mobile phone App Management
Access control , user information registration and devices setting up
Technical Specifications
| Fingerprint Capacity | 1500 |
| Card Capacity | 10,000 |
| Transaction Capacity | 100,000 |
| Hardware Platform | ZEM720 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZKFinger V10.0 |
| Communication | RS485, TCP/IP, USB-host, Bluetooth |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Signal | Input & Output |
| Standard Access Control Functions | RS485 Reader, Time Zone, Group, Multi-identification, Duress mode, Anti-passback |
| Optional Function | MIFARE Card, External USB Keypad |
| Display | N/A |
| Power Supply | 12V DC |
| Operating Temperature | -10°C – 60°C |
| Operating Humidity | 10%-90% |
| Protection Grade | IP65 |
| Dimensions | 73 x 148 x 34.5 mm (Length*Width*Thickness) |
| Gross Weight | 1.15kg |

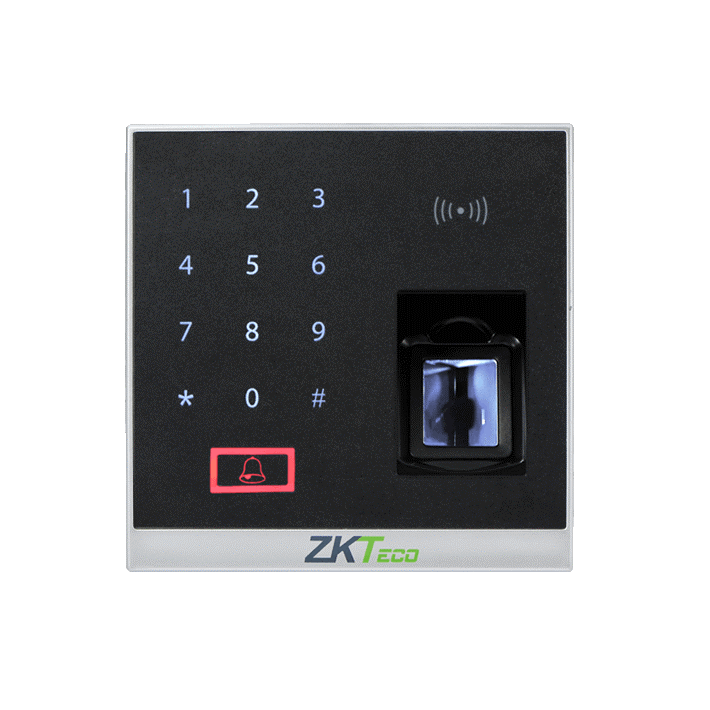

X8-BT
X8-BT
Innovative Biometric Fingerprint Reader for Access Control Applications
Overview
X8-BT is the most innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm with excellent reliability, precision and matching speed.

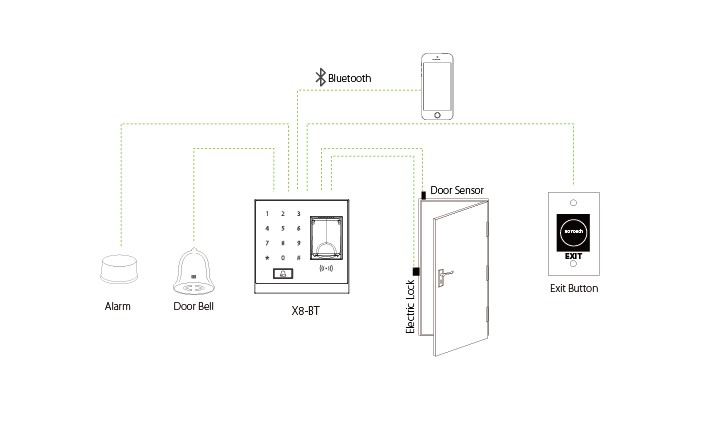

It can operate on standalone mode with the interface for third-party electric lock, alarm, door sensor, exit button and doorbell.
Its touch keypad operation is easy and convenient, providing user a comfortable use experience. It supports Bluetooth communication, mobile phone App management, And realizes access control ,user information registration, devices setting up.
Technical Specifications
| Fingerprint Capacity | 500 |
| Card Capacity | 500 |
| Transaction Capacity | N/A |
| Sensor | SilkID Sensor |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | Bluetooth |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Standard Functions | Simple access control function, ID card |
| Optional Function | MIFARE Card |
| Power Supply | 12V DC, 3A |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 20%-80% |
| Dimensions | 101.5 x 101.5 x 37 mm (Length*Width*Thickness) |
| SDK | N/A |
| Software | ZKBioBT APP |

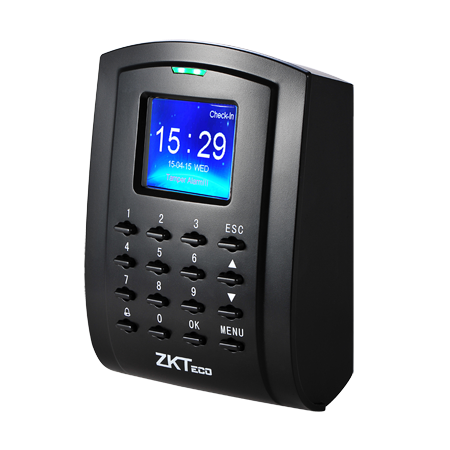

SC105
Color TFT & Graphical UI RFID Access Control Terminal
Overview
SC105 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch.
Function
• 2.0-inch color display with graphical UI for easy operation
• Up to 24 user-defined schedules that can be activated on a daily bell alert
• Prompt audio acceptance or rejection signals for valid or invalid cards
• TCP/IP or RS485 communication for various networking environments
• Supports USB flash drive for offline data management
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Multi-verification methods to enhance security level
• Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
• Duress Alarm offers effective protection against duress by threats
• Tamper Proof Switch and multiple alarm outputs
• Multi-languages
Technical Specifications
| ID card Capacity | 30,000 |
| Transaction Capacity | 80,000 |
| Communication | TCP/IP, RS485, USB-Host |
| Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, doorbell |
| Auxiliary Interface | 1ea for linkage function |
| Wiegand Signal | Output & Input, SRB |
| Standard Functions | Anti-passback |
| Optional Functions | Mifare, Print Function |
| Display | TFT LCD Color Screen |
| Power Supply | DC 12V |
| Operating Temperature | 0°C ~ 45°C |
| Operating Humidity | 20% ~ 80% |
| Dimension(L*W*H) | 130mm*94mm*52mm |
| SDK | Standalone SDK |
